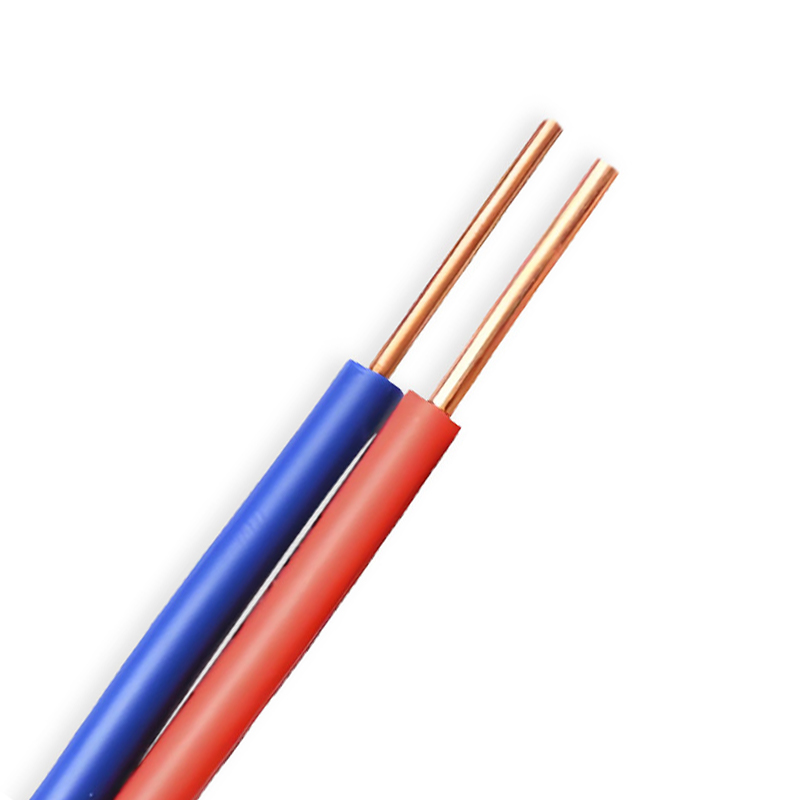

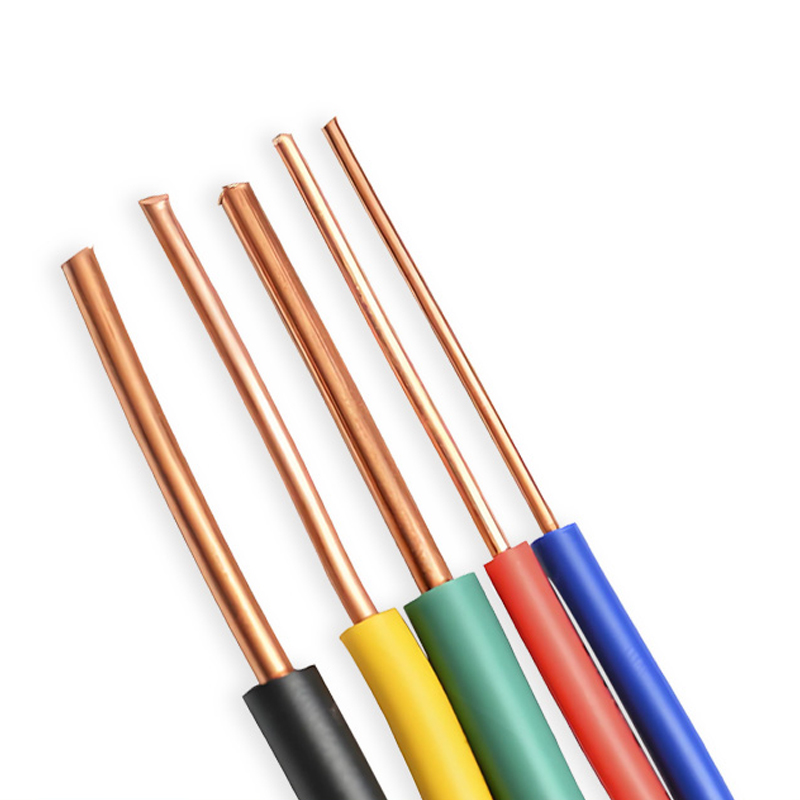

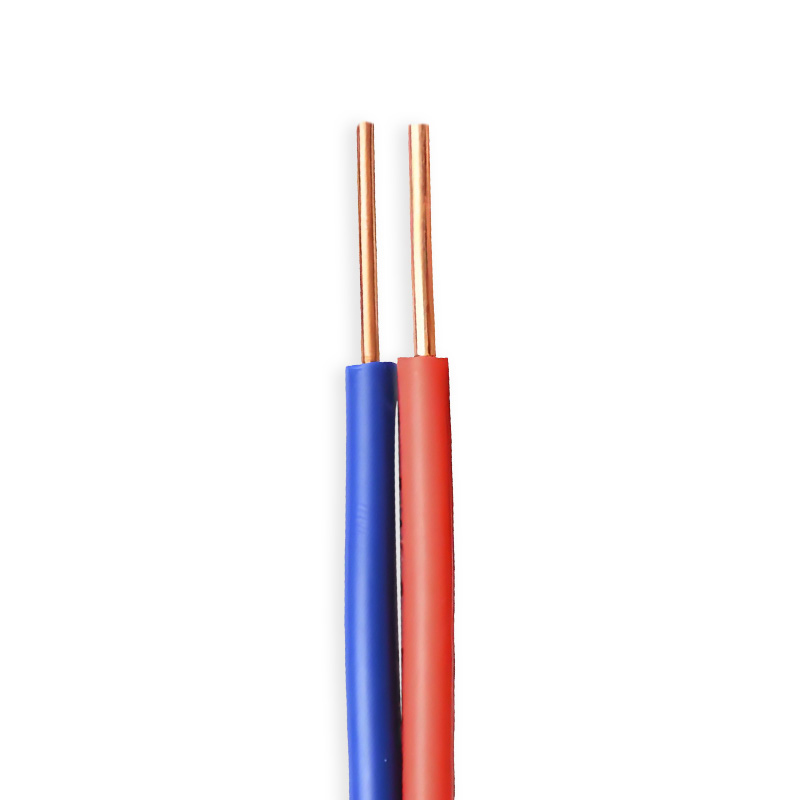

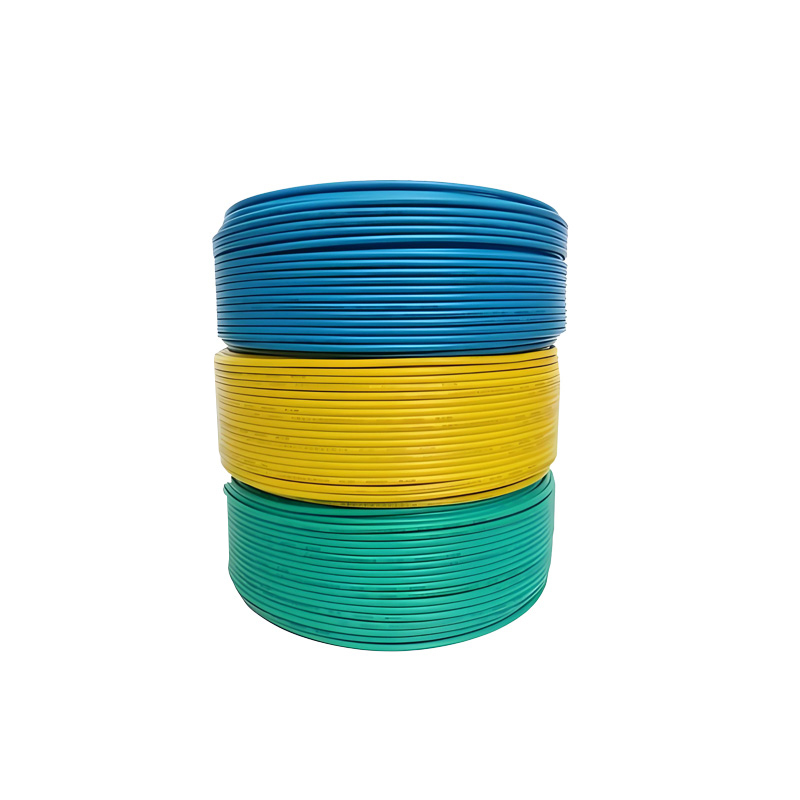

Copper-Core Wire

MODEL BV

Copper-Core Wire

Power devices, household appliances, instruments and telecommunications equipment.

Rated voltage: 450/750 V
Temperature: -15°C to 70°C
Minimum bending radius: ≥20D

Enquire about BV View technical data

Technical data

BV product data

Core count, cross-section, shielding and order length can be configured for the application.

Model: BV
Colour: Red, yellow, green, blue or black
Operating temperature: -15°C to 70°C
Minimum bending radius: ≥20D
Rated voltage: 450/750 V
Conductor: GB/T 3956 Class 2 / IEC 60228 Class 2
Insulation: Polyvinyl chloride
Sheath: Not listed
Typical applications: Power devices, household appliances, instruments and telecommunications equipment
